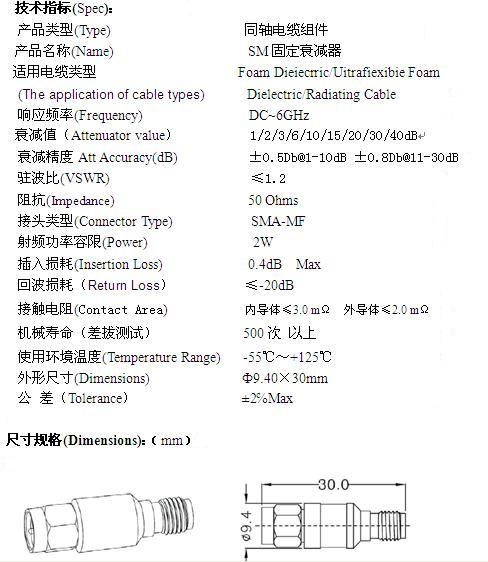

Power: 2W
Attenuation values: 1-40dB
Frequency range: DC-6G
VSWR: ≤1.2
Connection Type: SMA-JK
SMA fixed attenuators are mainly used to reduce the signal and power levels; improve impedance matching between the signal source and the load; and shall measure the signal gain or loss and other purposes using alternative methods. It can be coupled with power meter, comprehensive tester or spectrum analyzer to accurately measure a variety of RF and microwave transmitter power or spectrum.
It has the following characteristics: frequency band, low VSWR, flatness attenuation value, anti-pulse and anti-burnout ability.
